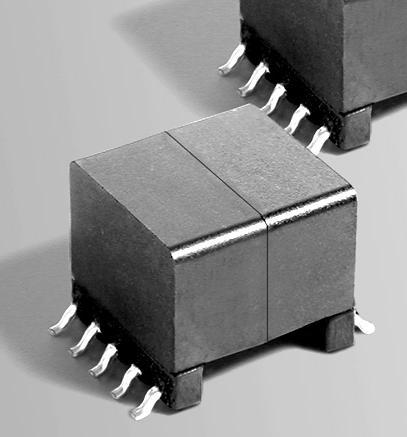

EP Forward Mode Transformers

• Designed for forward topology operating at 250 kHz• Three different outputs: 3.3 V, 5.0 V and 12 V• 33 – 57 V input; excellent for PoE applications• 1500 Vrms, one minute isolation primary and bias to secondary

Inquiry now

Detailed Description Inquiry now

1、Core material Ferrite

2、Terminations RoHS tin-silver over tin over nickel over phos bronze.

3、Other terminations available at additional cost.

4、Weight 6.5 – 6.7 g

5、Ambient temperature –40°C to +85°C

6、Storage temperature Component: –40°C to +85°C.

7、Tape and reel packaging: –40°C to +80°C

8、Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

9、Moisture Sensitivity Level (MSL) 1 (unlimited floor life at<30°C /85% relative humidity)
