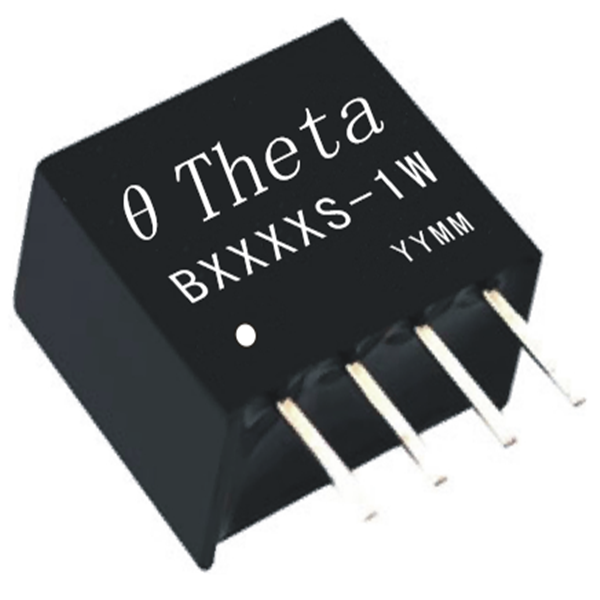

B_S-1W Power Modules

FEATURES：

θ Ultra Compact SIP package

θ Operating temperature range: -40℃ to +105℃

θ High efficiency up to 80%

θ Isolation voltage: 1.5K VDC

θ   High power density

θ  No external component required

θ  International standard pin-out

θ  UL,EN approval

A_S-1W & B_LS-1W series is specially designed for applications where an isolated voltage is required in a distributed power supply

system. It is suitable for:

θ Where the voltage of the input power supply is stable (voltage variation: ±10%Vin);

θ Where isolation is necessary between input and output (isolation voltage ≤1500VDC);

θ Where do not has high requirement of line regulation and load regulation;

θ Such as: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
